Hex grid construction

This notebook demonstrates two ways to build a collection of hex IDs covering a geographic area:

• rectangle_of_hexes — fills a lon/lat bounding box

• region_of_hexes — fills an arbitrary shapely polygon

Both methods return a 1-D array of int64 hex IDs that can be passed directly to to_geodataframe for inspection and plotting.

Imports

from hextraj import HexProj

import numpy as np
import geopandas as gpd
import geopandas.datasets
from shapely.geometry import Polygon
from matplotlib import pyplot as plt

Projection setup

We use Lambert Azimuthal Equal-Area centred on the North Sea (10 °E, 55 °N) with 200 km hexes — large enough to give a readable grid over this region.

hp = HexProj(
    projection_name="laea",
    lon_origin=10,
    lat_origin=55,
    hex_size_meters=200_000,
)
hp

HexProj(projection_name='laea', lon_origin=10, lat_origin=55, hex_size_meters=200000, hex_orientation='flat', )

1. Rectangle of hexes

rectangle_of_hexes(lon_min, lon_max, lat_min, lat_max) returns every hex whose centre falls inside the bounding box.

rect_ids = hp.rectangle_of_hexes(
    lon_min=-5,
    lon_max=25,
    lat_min=50,
    lat_max=62,
)
print(f"{len(rect_ids)} hexes in rectangle")

37 hexes in rectangle

rect_gdf = hp.to_geodataframe(rect_ids)
rect_gdf.head()

	geometry
47	POLYGON ((-4.33868 50.97414, -5.22529 49.26717...
15	POLYGON ((0.23206 49.89649, -0.79521 48.22571,...
30	POLYGON ((-0.4624 52.9761, -1.52214 51.30075, ...
49	POLYGON ((-1.28734 56.04629, -2.37928 54.36421...
72	POLYGON ((-2.28151 59.10735, -3.40304 57.41622...

The GeoDataFrame index holds the hex IDs. Each row carries the hexagonal polygon in EPSG:4326.

world = gpd.read_file("https://naciscdn.org/naturalearth/110m/cultural/ne_110m_admin_0_countries.zip")
ax = rect_gdf.plot(figsize=(8, 5), edgecolor="steelblue", linewidth=0.8)
world.clip(rect_gdf.total_bounds).plot(ax=ax, color="lightgray", edgecolor="white")

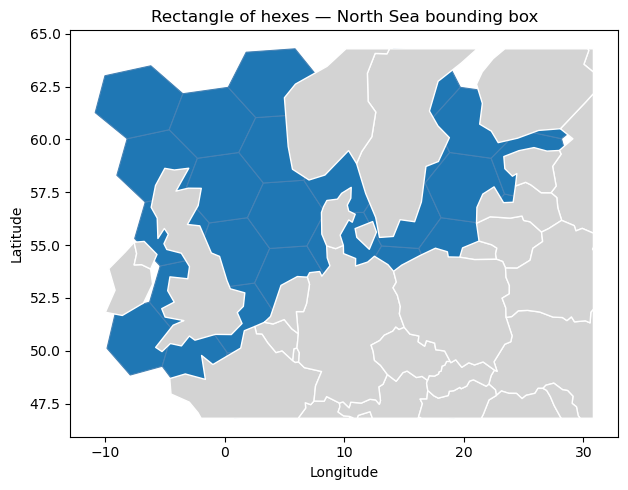

ax.set_title("Rectangle of hexes — North Sea bounding box")
ax.set_xlabel("Longitude")
ax.set_ylabel("Latitude")
plt.tight_layout()

Printing the hex IDs (the index) confirms they are plain int64 values:

print(rect_gdf.index.values)

[47 15 30 49 72 99 11  6 17 32 51  4  1  8 19 34  9  2  0  5 14 18  7  3
 12 25 50 31 16 10 23 71 48 29 21 38 96]

2. Region of hexes from a shapely polygon

region_of_hexes(polygon) accepts any shapely geometry in WGS84 and keeps only hexes whose centres fall inside it. Here we define a rough outline of the North Sea.

north_sea = Polygon([
    (-5,  57),   # NW corner (Scotland)
    ( 2,  51),   # SW corner (English Channel entrance)
    ( 9,  53),   # southern Bight
    (12,  56),   # Kattegat approach
    ( 8,  58),   # Norwegian coast south
    ( 5,  62),   # northern limit
    (-3,  60),   # NW Scotland
    (-5,  57),   # close polygon
])

region_ids = hp.region_of_hexes(north_sea)
print(f"{len(region_ids)} hexes inside North Sea polygon")

14 hexes inside North Sea polygon

region_gdf = hp.to_geodataframe(region_ids)
region_gdf.head()

	geometry
49	POLYGON ((-1.28734 56.04629, -2.37928 54.36421...
72	POLYGON ((-2.28151 59.10735, -3.40304 57.41622...
6	POLYGON ((4.20399 51.73985, 3.00359 50.10807, ...
17	POLYGON ((3.76491 54.84012, 2.50196 53.2046, -...
32	POLYGON ((3.23804 57.93637, 1.90488 56.29498, ...

We add a colour column — the hex ID itself — to produce a simple choropleth that distinguishes each cell.

region_gdf["hex_id"] = region_gdf.index.astype(float)
region_gdf.head()

	geometry	hex_id
49	POLYGON ((-1.28734 56.04629, -2.37928 54.36421...	49.0
72	POLYGON ((-2.28151 59.10735, -3.40304 57.41622...	72.0
6	POLYGON ((4.20399 51.73985, 3.00359 50.10807, ...	6.0
17	POLYGON ((3.76491 54.84012, 2.50196 53.2046, -...	17.0
32	POLYGON ((3.23804 57.93637, 1.90488 56.29498, ...	32.0

outline_gdf = gpd.GeoDataFrame(geometry=[north_sea], crs="EPSG:4326")

world = gpd.read_file("https://naciscdn.org/naturalearth/110m/cultural/ne_110m_admin_0_countries.zip")
ax = region_gdf.plot(figsize=(7, 7), column="hex_id", cmap="tab20", edgecolor="white", linewidth=0.6, legend=False)
world.clip(region_gdf.total_bounds).plot(ax=ax, color="lightgray", edgecolor="white")
outline_gdf.boundary.plot(ax=ax, color="black", linewidth=1.5, linestyle="--", label="Region polygon")

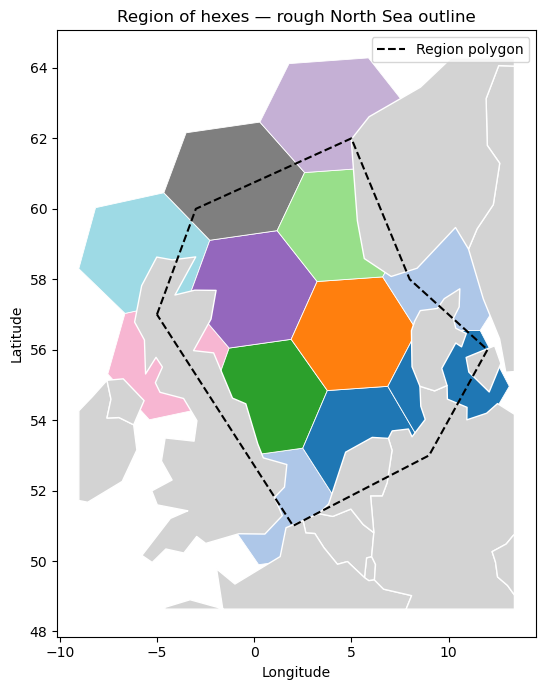

ax.set_title("Region of hexes — rough North Sea outline")
ax.set_xlabel("Longitude")
ax.set_ylabel("Latitude")
ax.legend()
plt.tight_layout()
